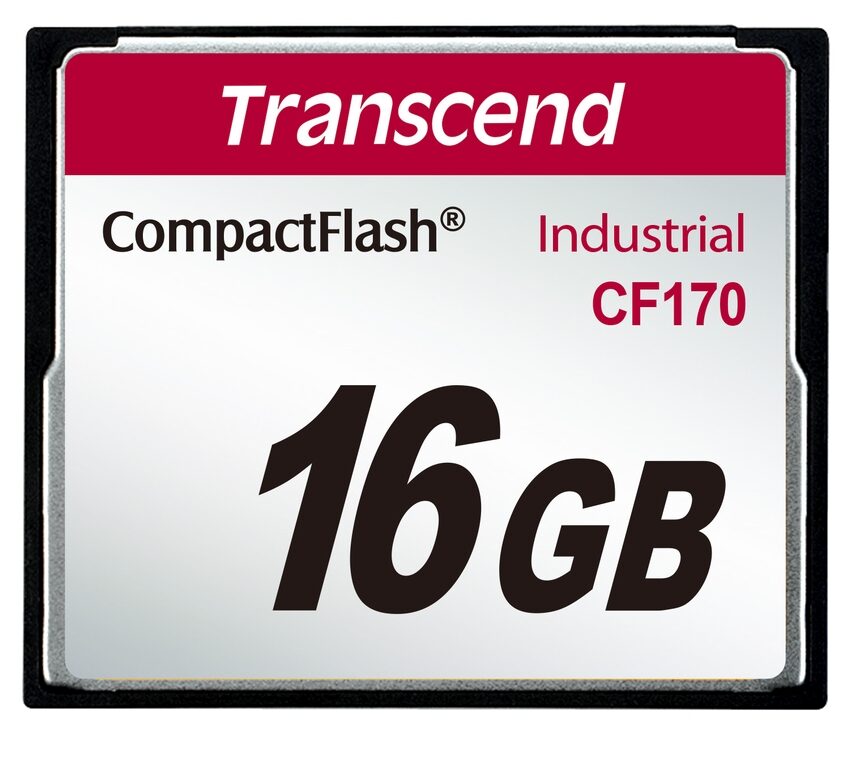

Transcend 16GB INDUSTRIAL CF CARD CF170 paměťová karta (MLC)

Transcend 16GB INDUSTRIAL CF CARD CF170 paměťová karta (MLC) CF170 CF Card Boasting high-speed data transfer rates and extra large storage space, Transcend's industrial CF170 CompactFlash cards are perfect for embedded systems, medical instruments, road surveillance systems, and other industrial applications with demanding performance and capacity requirements. Thanks to their use of StaticDataRefresh and EarlyRetirement technology, the CF170 CF cards are able to correct data errors, maintain data integrity, and extend the lifespan of their flash memory cells. Features: RoHS compliant products CompactFlash Specification Version 6.0 Complaint Support S.M.A.R.T (Self-defined) Support Security Command Support Static Data Refresh, Early Retirement to extend product life Operation Modes: PC Card Memory, PC Card IO, True IDE True IDE Mode supports: UDMA0-5, MDMA0-2, PIO0-6 True IDE mode: Fixed Disk (Standard) PC Card Mode supports up to Ultra DMA Mode 5 PC Card Mode: Removable Disk (Standard) Built-in BCH ECC (Error Correction Code) functionality and global wear-leveling algorithm ensures highly reliable of data transfer Power Shield function, the product can protect itself when abnormal power occurs or irregular temperature usage. Specifications Interface(connector): Compact Flash, 50P Form Factor: Compact Flash Card Flash Type: MLC Capacity(GB): 16GB Max. R/W Performance(MB/s)(Vary by density): - Read: 90MB/s - Write: 60MB/s Op. Voltage(V): 3.3V±5% or 5V±10% Power Consumption(W): 0.76W Op. Temp.(C): - 25C~85C Storage Temp.(C): - 40C~85C Humidity(%): 0%~95% Shock(G): 1500G, 0.5ms, 3 axis Vibration(Hz/G): 20G (Peak-to-Peak), 20Hz to 2000Hz(Frequency) Dimensions(mm): 42.8mm × 36.4mm × 3.3mm MTBF(hours): 1,000,000 hours
